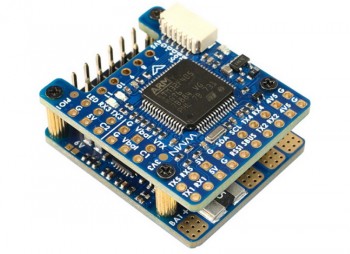

Полетный контроллер Matek F405 WMN для самолетов

F405 WMN - высокопроизводительный полетный контроллер от Matek с процессором F405 работающим на частоте 168MHz и поддерживающий прошивки ArduPilot и iNAV.

MCU: STM32F405RGT6, 168MHz , 1MB Flash

IMU: ICM42688-P

Baro: SPL06-001

OSD: AT7456E

Blackbox: 16M Flash

5x UARTs,  1x Softserial_Tx option(INAV)

12x PWM outputs

1x I2C

3x ADC (VBAT, Current, RSSI)

1x spare PINIO

USB/Beep Extender with Type-C(USB2.0)

Built in inverter on UART2-RX for SBUS input

Switchable Dual Camera Inputs

Dimensions: 31 x 26 x 16.5 mm

Mounting: 22 x 22mm, Φ2mm

Weight: 10g

Питание:

6~30V DC IN (2~6S LiPo)

132A Current Sense (INAV Scale 250, ArduPilot 40A/V)

PDB/Current sense resistor: 90A continuous, 132A burst.

BEC 5V 1.5A for FC & Peripherals

BEC Vx 5A for servos, 5V/ 6V option

Vbat for VTX and camera

LDO 3.3V 200mA

Battery Voltage Sensor: 1k:20k

FC Firmware

ArduPilot: MatekF405-TE

INAV: MATEKF405TE (INAV 5.0 or newer)

1x F405-WMN

1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.

Dupont 2.54 pins  (Board is shipped unsoldered)
