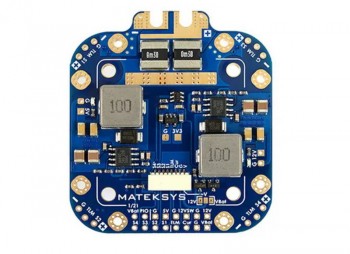

Плата для распределения питания FCHUB-12S от Matek с рабочим током 280А и пиковым 440А при 12S LiPO, применяется для питания квадрокоптеров.
PDB
Input voltage range: 8~60V (3~12S LiPo)
4x70A cont, 4x110A burst
4x ESC power /signal/ telemetry pads
Current Senor: 440A, 3.3V ADC, Scale 75
2x LED indicators for 5V, 12V
1K:20K voltage divider built-in
JST-SH 8pin connector
“V” pad: 12V or VBat voltage selectable
G: GND
Curr: current sensor signal
TLM: for BlHeli32 ESC telemetry
S1~S4: ESC signal
BEC 5V output (5V pad)
Voltage: 5.1 +/- 0.1VDC
Continuous current 5 Amps, Max.6A
Short-circuit tolerant (2 seconds)
Overcurrent protection & self-recovery
BEC 12V output (12V pad)
Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)
Continuous current 4 Amps, Max.5A
Input voltage<12V, Output voltage = Input voltage
Short-circuit tolerant (2 seconds)
Overcurrent protection & self-recovery
Switchable 12V output (12VSW pad)
12V ON/OFF switchable via PINIO(high/low level)
support constant 2A
can be use for powering VTX,LED etc.
BEC 3.3V output
Linear Regulator
Continuous current: 500mA
Physical
Mounting: 30.5 x 30.5mm, Φ3mm
Dimensions: 55 x 50 x 6 mm
Weight: 21g
Including
1x FCHUB-12S V2
1x SH1.0_8pin cable 5cm, 2x SH1.0_8pin connectors
